KD-Shuttle-4000-2K
kiddi
Welcome to the future of plastic rolling with our revolutionary Two-Arm Shuttle Plastic Rolling Machine. Designed to exceed industry standards, this cutting-edge machine combines precision, efficiency, and innovation to transform your plastic rolling processes.

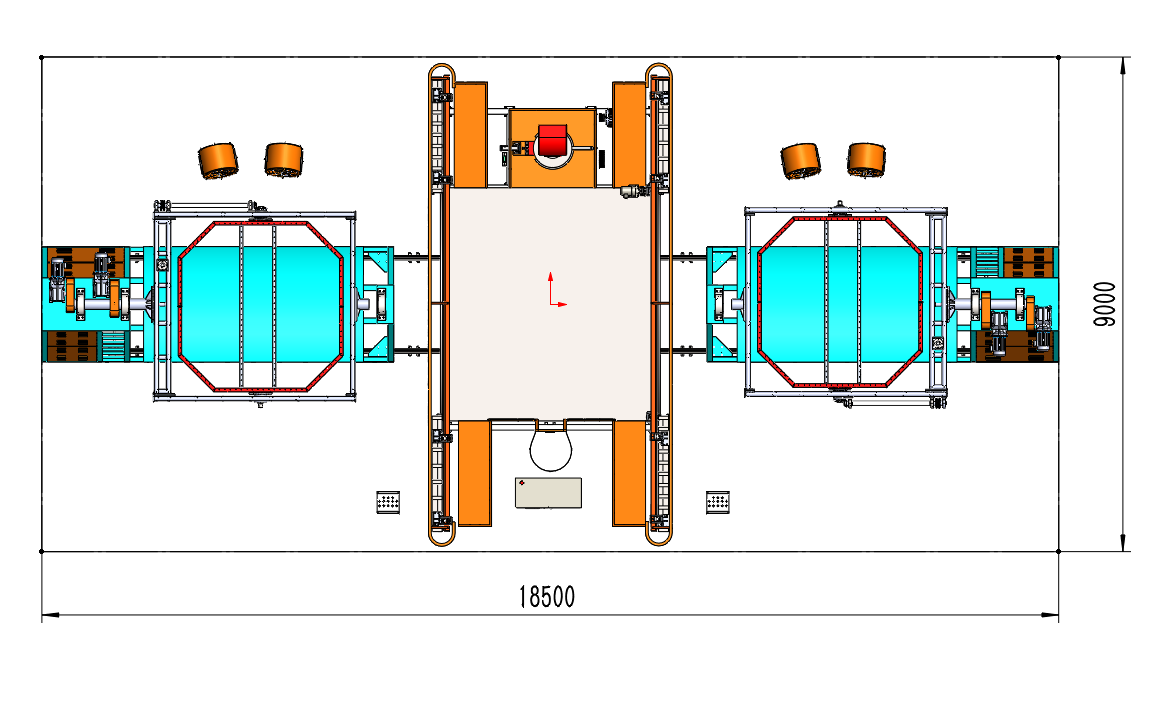

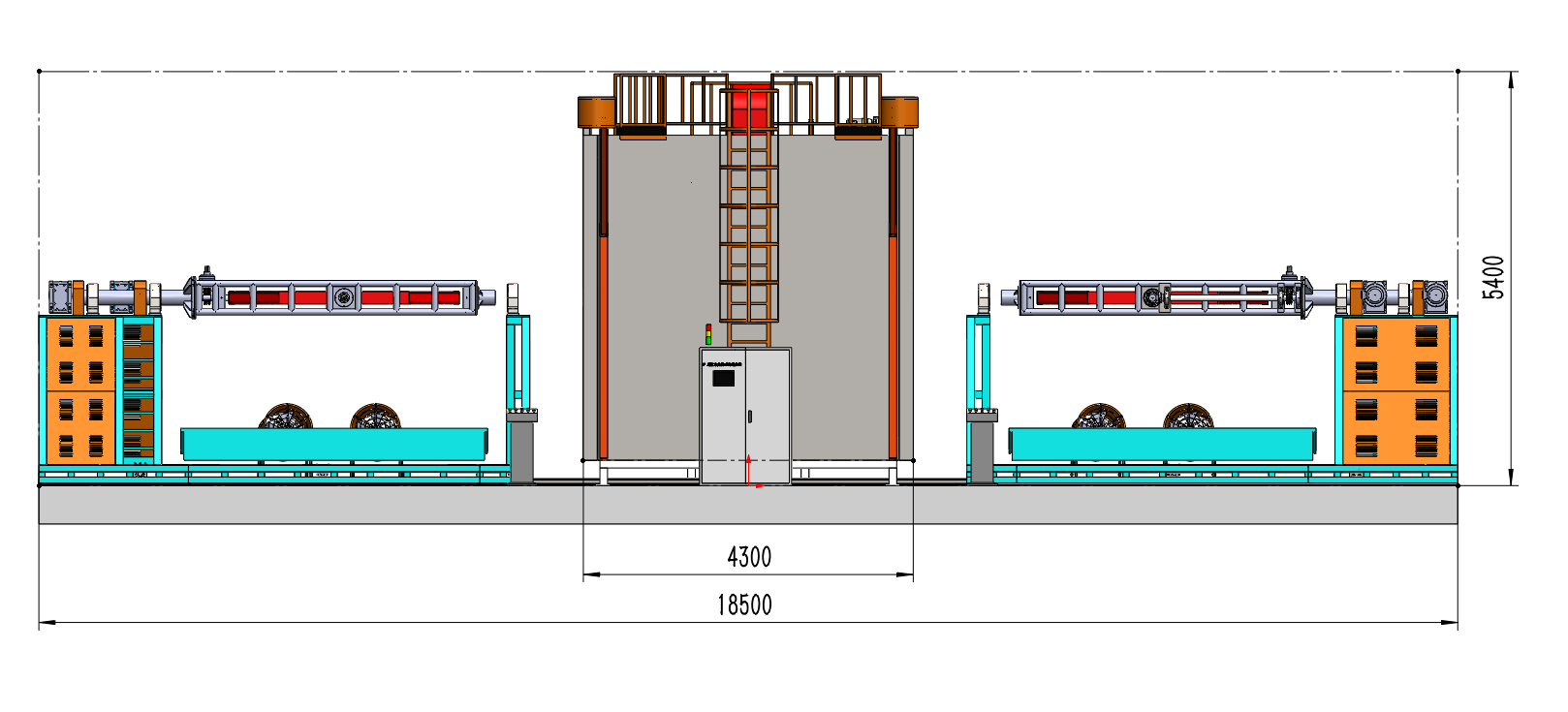

Basic Installation Size: L 18.5 meter W 9.0 meter H 5.4 meter
Straight arm effective working range:
Arm/moving trolley:
a) Number of arm/trolleys: 2 straight arms, maximum load: 2000 KG
b) Maximum diameter: 4000 mm
c) Secondary shaft (disc) motor: 5.5 kw x 3 sets, 0-12 RPM (inverter control)
d) Main shaft (arm) motor: 5.5 kw x3 sets, 0-10 RPM (inverter control)
e) trolley running Motor: 1.5 kw x 3 sets (inverter control)
f) There is an air pipe installed in the main shaft, and an air amplifier can be installed on the mold. Air pressure: ≤ 0.02 MPA
Oven hot air circulation mechanism
a) Pure hot air heating, no open flame, protect the mold
b) The stainless-steel turbofan guides the hot air to blow directly to the mold from the bottom, and then recovers the hot air from the upper circulation hole
c) Maximum kcal/hour (Kcal/Hr): 1000000 Kcal/hr, the burner is Leah Road RS-100.
d) Gas consumption of natural gas: 47-117 cubic meters per hour, gas consumption of liquefied petroleum gas: 18-45 cubic meters per hour
e) Maximum oven temperature: 350 degrees
f) Circulation fan: 11 kw (28500 m³/hr)
g) door control: 1.5 kw x 1 set
h) It takes 4-6 minutes for the oven to heat up to 280 degrees Celsius
i) Oven mobile 2.2 KW
Cooling system:
Cooling station: 4 high-power fans.
Cooling fans: 2 x 2.2 kw (3HP) (10000m³/hr)
Control system
Our operating system uses the programmable PLC of Siemens. You can make the following changes:
a) Spindle speed of each arm (0-10 RPM adjustable)
b) Negative axis speed for each arm (0-12 RPM adjustable)
c) The maximum temperature and minimum temperature of each arm (can be set differently according to the needs and controlled separately)
d) The heating time required by each arm (can be set differently according to needs and controlled separately)
e) Cooling time of each arm (can be set differently according to needs and controlled separately)
f) The blowing time of the mold (can be set differently according to the needs and controlled separately)
g) Show where each arm is (so that workers need to operate it)
h) A graph showing the heating temperature of the oven (easy to adjust the temperature according to the product temperature demand)
i) Display how long the oven has been heating
j) Displaying the cooling time of the cooling position
k) Show if the mold is balanced on the arm
l) Siemens touch screen can freely switch between Chinese and English
7. Control System:
Our Rotational Molding Machine use Siemens PLC control system, and adopts digital system analysis for equipment temperature, rotating arm, heating time, position, etc. Prevent unnecessary losses caused by mis-operation. It is also equipped with an alarm system for data collection of combustion system failures, temperature and time data collection, The motor arm motor current system balance data collection, cooling system data, and management all have monitoring functions. And adopt modular control, Each trolley, oven, and cooling are equipped with an independent electrical system, reserved for adding a station interface, and a man-machine operating system. Direct communication, The communication signal is stable, which solves the problems caused by line faults, and is equipped with a remote terminal maintenance module for remote maintenance of equipment. Overhaul, technical update, high efficiency brought by after-sales and technical support, the equipment can be controlled by remote control, which is convenient for disassembling and assembling the mold, Increase productivity.
Our Two-Arm Shuttle Plastic Rolling Machine is engineered to deliver exceptional precision and efficiency in plastic rolling. Its advanced servo motors and precise control system ensure accurate and consistent rolling results, reducing material waste and improving overall productivity. With its high-speed operation, you can achieve faster production cycles and meet demanding deadlines with ease.
We understand the importance of investing in a machine that stands the test of time. That's why our Two-Arm Shuttle Plastic Rolling Machine is constructed with premium-grade materials and undergoes rigorous quality control measures. The robust frame and components ensure durability, allowing the machine to withstand heavy usage and maintain optimal performance over extended periods.
At the heart of our Two-Arm Shuttle Plastic Rolling Machine lies advanced technology that simplifies and enhances the rolling process. The state-of-the-art digital control system offers intuitive operation and precise parameter adjustments, ensuring seamless control over speed, temperature, and pressure. The intelligent interface provides real-time monitoring and diagnostics, enabling operators to optimize settings and troubleshoot efficiently.
Safety is paramount in any industrial setting. Our Two-Arm Shuttle Plastic Rolling Machine is equipped with an array of safety features to protect operators and prevent accidents. Safety guards and emergency stop buttons ensure immediate halting of operations in case of emergencies. Additionally, the machine undergoes rigorous testing to meet international safety standards, providing peace of mind and confidence in its reliability.
Investing in our Two-Arm Shuttle Plastic Rolling Machine translates to significant improvements in production efficiency and cost savings. By reducing manual labor and optimizing the rolling process, you can achieve higher output levels while minimizing operational expenses. The machine's energy-saving capabilities further contribute to cost reduction, allowing you to maximize your return on investment in the long run.
Don't just take our word for it – our satisfied customers have experienced remarkable results with our Two-Arm Shuttle Plastic Rolling Machine. From plastic packaging manufacturers to automotive parts suppliers, our machine has helped businesses achieve higher productivity, reduce rejects, and gain a competitive edge. Their success stories serve as a testament to the value and performance of our machine, empowering you to make an informed decision.
We are committed to your success beyond the purchase of our Two-Arm Shuttle Plastic Rolling Machine. Our dedicated team of experts is ready to provide comprehensive support throughout your journey. From installation and training to ongoing maintenance and troubleshooting, we ensure that you have the knowledge and assistance necessary to optimize the machine's performance and achieve your production goals.
